Development
in Lukuli - an empty field becomes a 20 bed, 800 patient
per month health centre
The founders of Hope Clinic Lukuli had no medical
experience, but did have a civil engineer, however the
construction project in Lukuli was still an amazing exercise
in cooperation and supportive supervision. February 2004
to July 2005 - but worth it:

|
The
land was been made available by the Namirembe Diocese
(Church of Uganda) when the St Stephen's Lukuli
committee agreed a 25 year lease without premium
or annual rent. The plot covers 30m by 20m (6,000
sq ft) and is adjacent to a major local road for
ease of patient access.

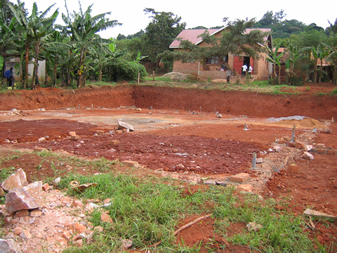

In
February 2004, the slope was removed and foundations
dug. The murrum was so hard that deep foundations
were not needed, but as the new facilities will
have internal toilets, plumbing and showers the
drainage had to be assembled at this stage. |
 |

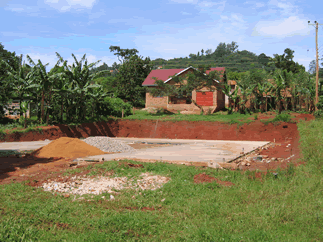

Viewed
again looking West, the foundation slab was laid
during March with support from Hima-Bamburi cement.
The community donated some of the sand and stones
that were needed and a local smallholder quarry
was where we bought the remaining stones.
The
workers on the site were paid and many were from
the Lukuli village and adjoining area. In 2004 the
village was beginning a period of rapid population
growth but the clinic was the largest construction
underway. |
 |

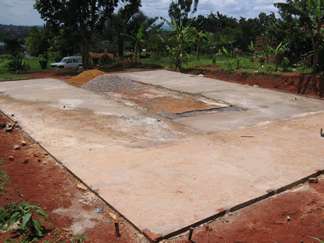

Looking
East, towards Lake Victoria, the cement area marks
out the rooms, with the area yet to be sealed corresponding
to the atrium training area. This was April's work
in 2004. The neighbourhood can be seen with many
banana (matoke) plants and open land.
The
left side of the picture houses the counselling
and drug dispensing areas in the foreground with
clinical consultation rooms and the lab in the background.
The right side is maternity ward, delivery rooms,
children's ward and the youth consultation room. |
 |

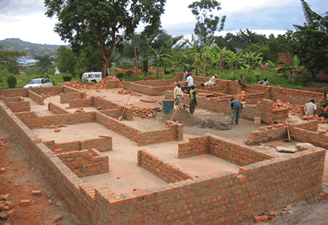

In
May 2004, John and Swanee marked out the floorplan
on the foundations and with Fred, the chief brickie,
laid the first row of bricks throughout the building.
A week later we had reached this stage. A week after
that the ring beams are being poured and the lintels
cast for the doorways.
The
construction was an education in the 'correct' techniques
common on larger projects but rare in house-building.
The cement moulds were reusable plastic-covered
boards, the interior scaffold for the builders to
stand on were safe, professional platforms and regular
re-measurement ensured that rooms were rectangles
or squares and not vague curved shapes so common
in other buildings. |
 |
In
June, Swanee placed the steel trusses for the roof
and set the metal sheets in place. His design would
minimise the cost through a triangular load-bearing
structure for the cross-beams and battens and uprights
strong enough for their job of holding the metal
sheets of the roof. We are grateful to Roofings
Limited for their support in the supply of all of
the metalwork for the building.
In
developing the materials-efficient construction
of floor, walls and roof, Swanee also coached the
many builders in these methods and they have been
using this to reduce the costs of their future work.
|
 |
Towards the end of 2004, Swanee had to leave Uganda
but not before completing the construction from
foundation to roof, and fitting the windows and
security bars and doors. We are grateful to Hwan
Sung for their support in providing uPVC windows
for the whole clinic. To complete the exterior we
fitted the glass blocks donated to us by the Delegation
of the European Union in Uganda. Standard Signs
kindly sponsored a new sign for the facility.
Fred
then continued the interior work, re-using doors
donated by the European Union's old Delegation offices,
and facing the exterior with half-bricks which make
the outside maintenance-free. We quickly learned
that barely half the cost and effort was done. |
 |
In
completing the interior, we have benefited from
Belgian Technical Cooperation who have provided
a Solar Construct water heater (hiding behind the
raised wall). We have also been awarded a Rotary
International grant for 1,500 mosquito nets, furnishing
the clinic, power back-up and site security. The
remaining glass blocks and most timber doors were
provided by the Delegation of the European Union
in Uganda
Sadolin
provided the paints, we tiled the bathrooms (two
squat and one seated) and installed the showers
for patients. The equipment and furniture from the
old clinic were transferred and in July 2005 we
opened in our new/ current home. Patient numbers
rose rapidly to over 600 a month by early 2006. |
